Product Description

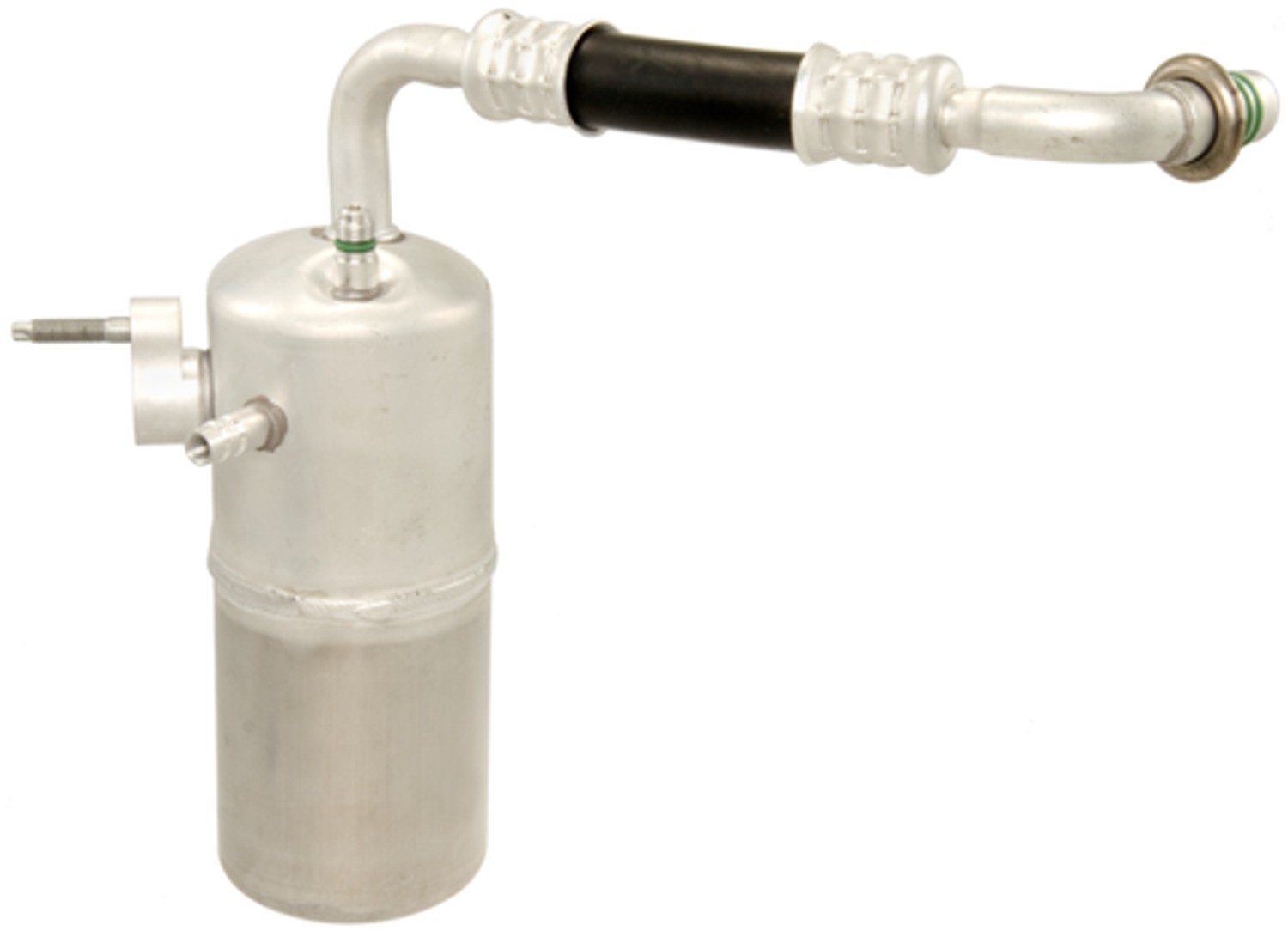

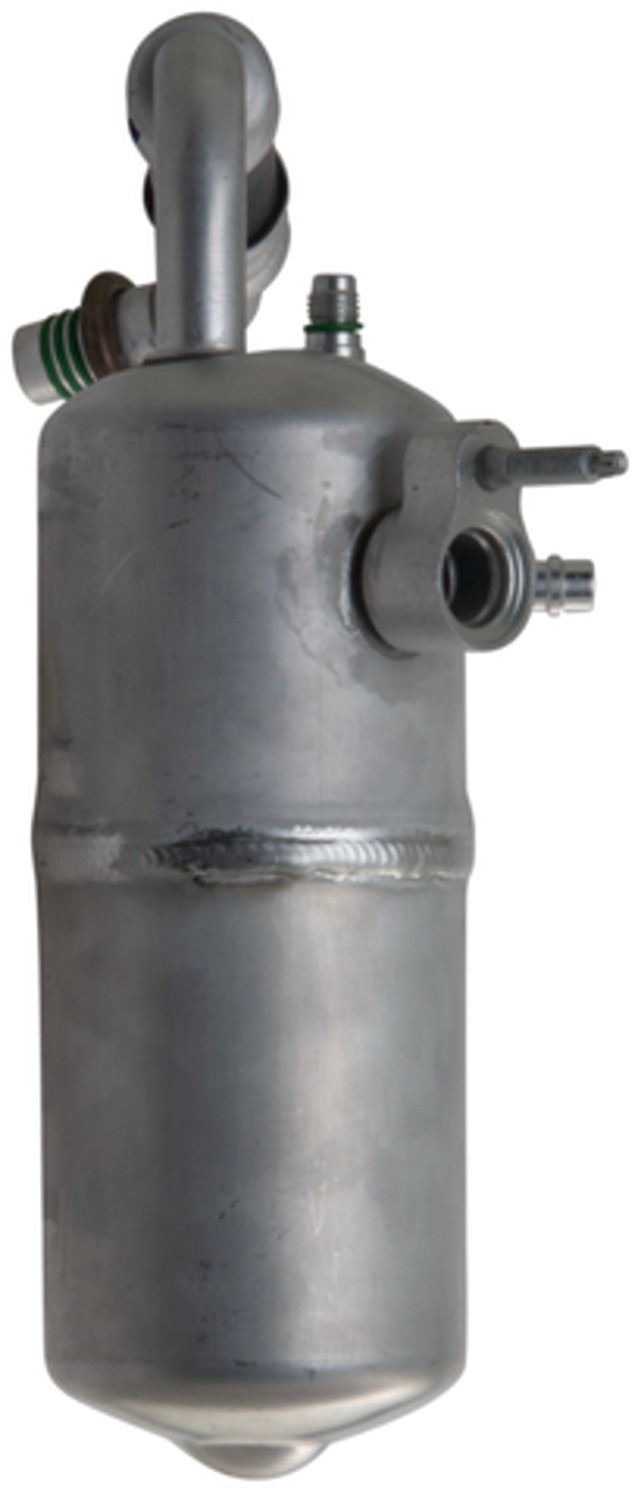

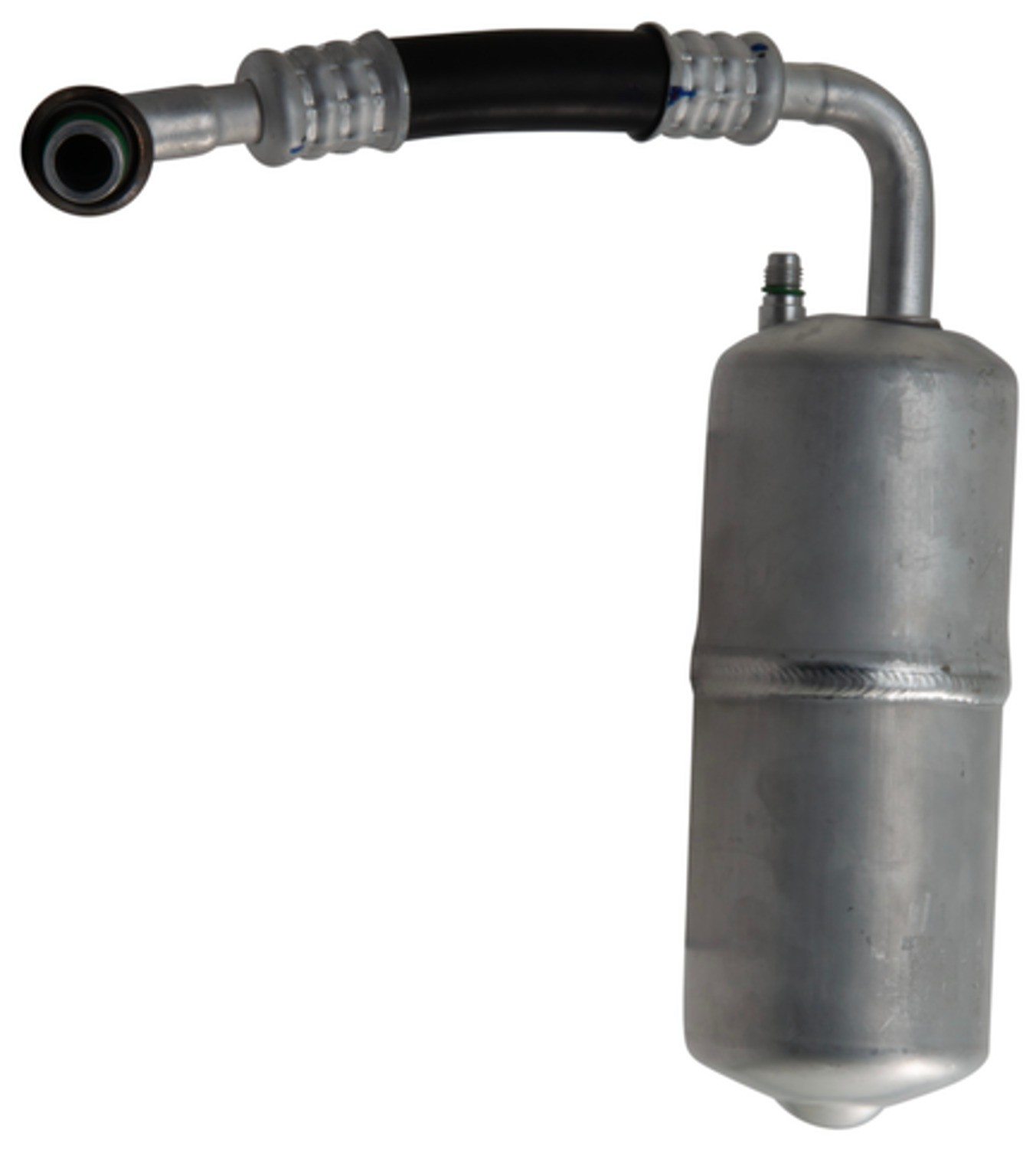

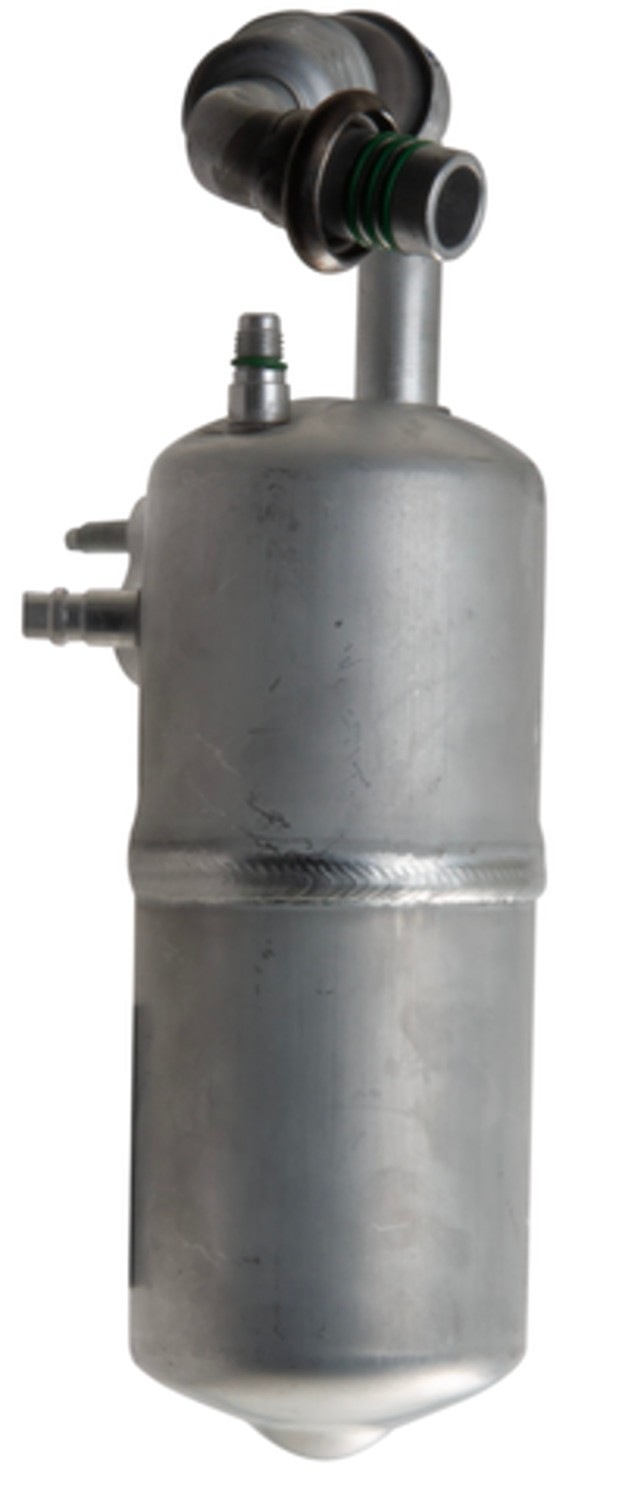

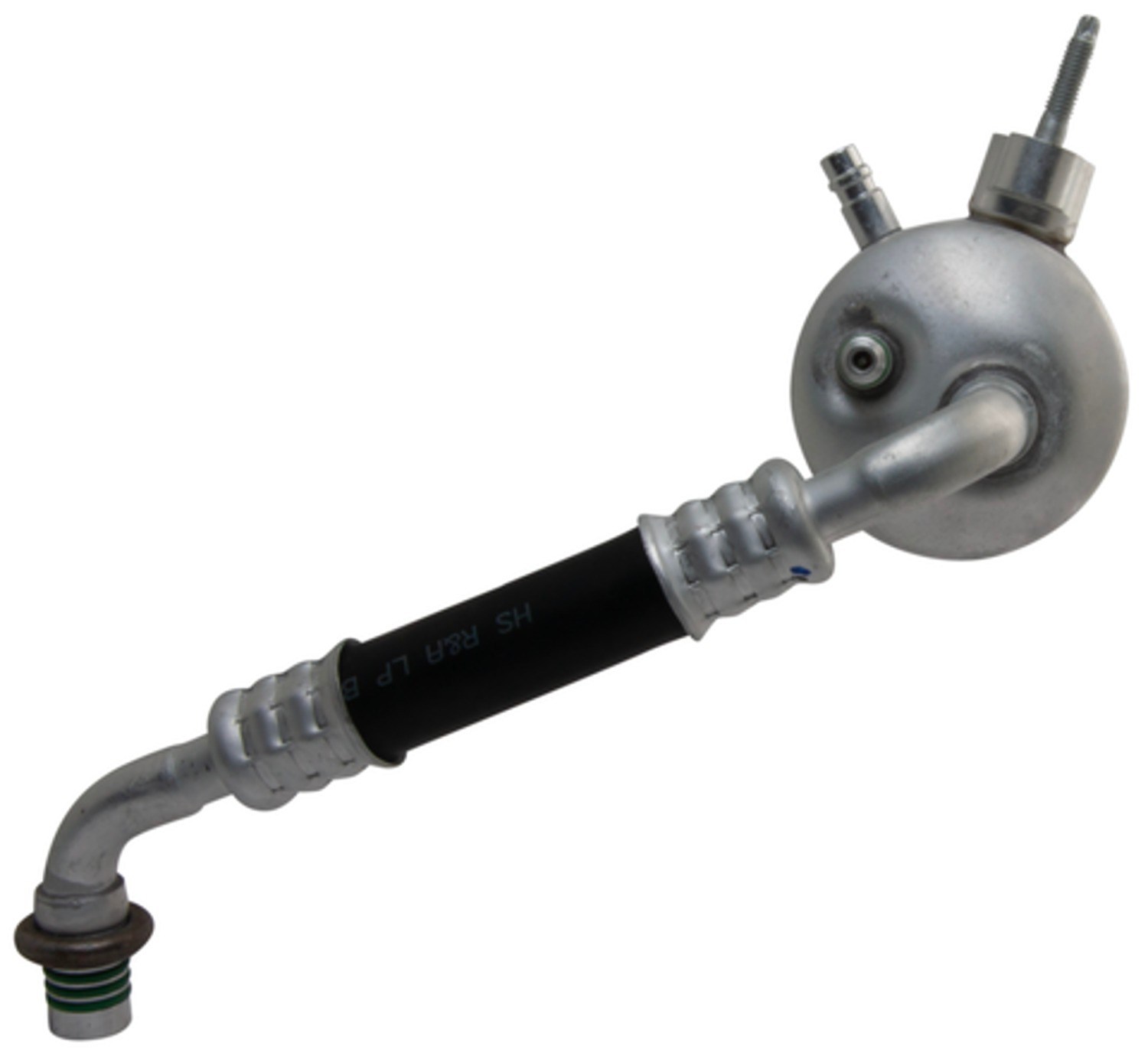

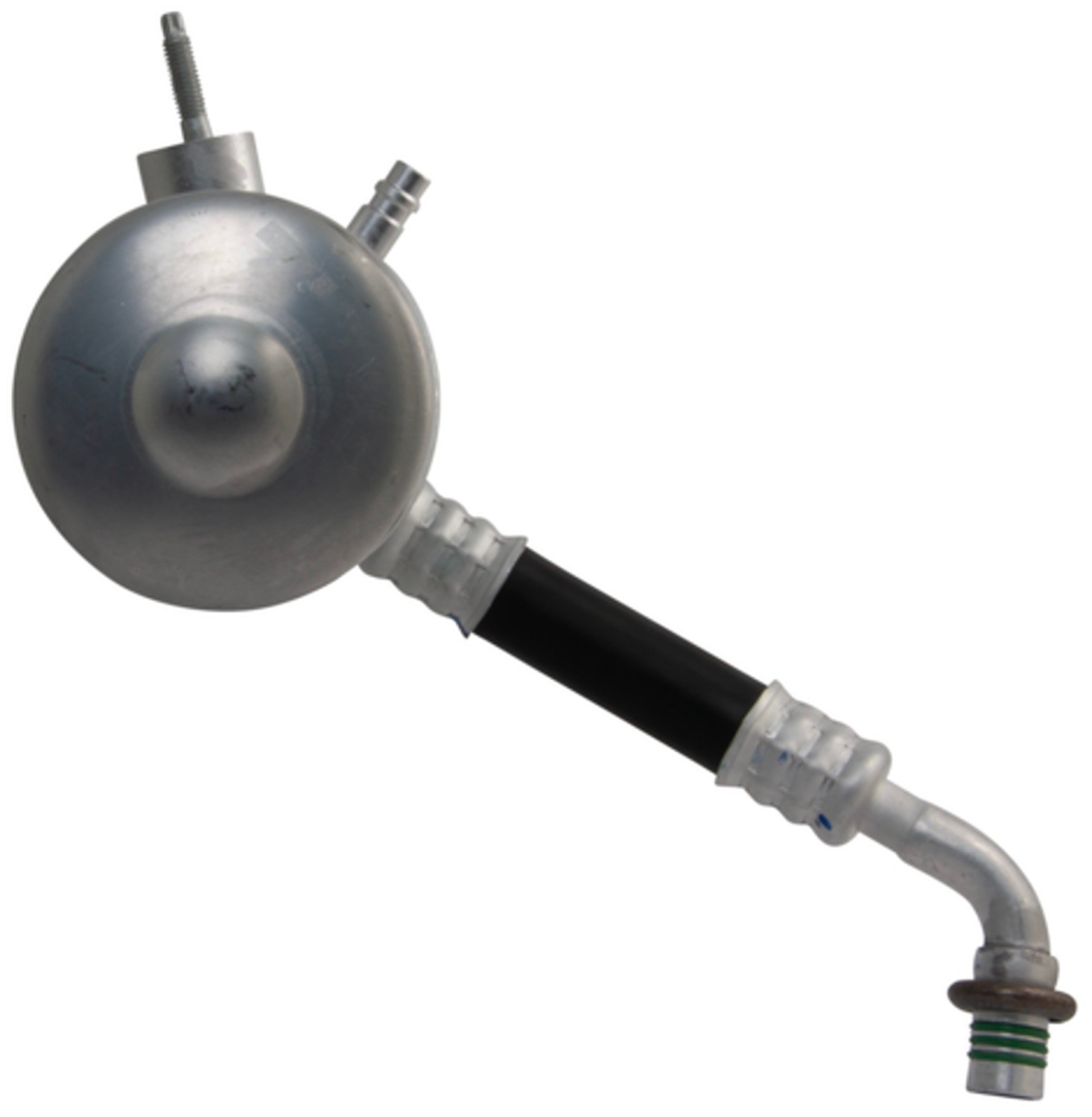

Accumulator w/ Hose WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons. | Accumulator w/ Hose
Features
- As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance.
- Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well.
- Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced.
- The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective.
- The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
- As a manufacturer in accumulator/filter driers, we offer quality units produced in a ISO/TS16949 & ISO14001 certified facility. State-of-the-art equipment and high quality materials ensure product integrity for long lasting performance. Our accumulator / filter driers feature quality welds for a durable, leak-free design in addition to high-quality desiccant for appropriate absorption. For easy installation, necessary gaskets, o-rings and seal are included as well. Replacement of the accumulator / filter drier is required to validate compressor warranty and must be replaced anytime the system is serviced. The absorption of moisture in the system is done through the use of a desiccant bag. A leaking or "open" system can cause the bag to become saturated within a few hours making the accumulator/filter drier ineffective. The accumulator / filter drier acts as a filter by removing moisture and contaminants from the air conditioning system. Such contaminants cannot be removed by flushing, therefore replacing the accumulator / filter drier is essential.
Specifications
| Type | w/ Hose |
|---|
| Style | Suction Side |
|---|
| Dia. MM | 88.9 |
|---|
| Inlet IN | 0.750 |
|---|
| Inlet MM | 19.05 |
|---|
| Material | Aluminum |
|---|
| Muffler? | w/o Muffler |
|---|
| Length MM | 215.9 |
|---|
| Manifold? | w/o Manifold |
|---|
| Outlet IN | 0.750 |
|---|
| Outlet MM | 19.05 |
|---|
| Description | Accumulator w/ Hose Assy |
|---|
| Outlet Type | P-Nut Fitting |
|---|

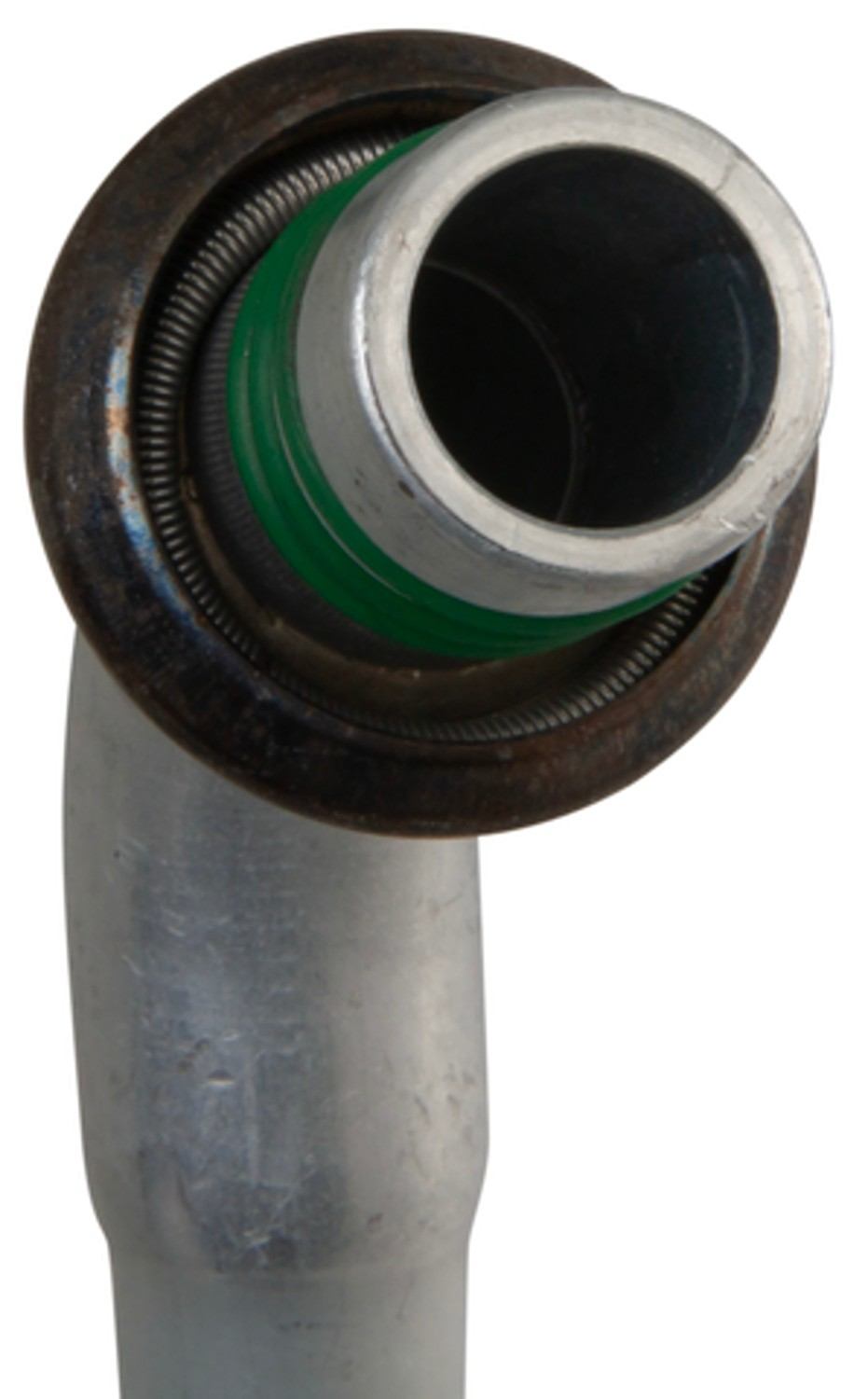

| Fitting Type | Male Springlock |
|---|
| Inlet Fraction | 3/4 |
|---|
| Outlet Fraction | 3/4 |
|---|
| Refrigerant Type | R134A |
|---|
| Service Port Qty | 1 |
|---|
| O-Ring A Quantity | 1 |
|---|
| O-Ring B Quantity | 3 |
|---|
| O-Ring C Quantity | 1 |
|---|
| O-Ring D Quantity | 1 |
|---|

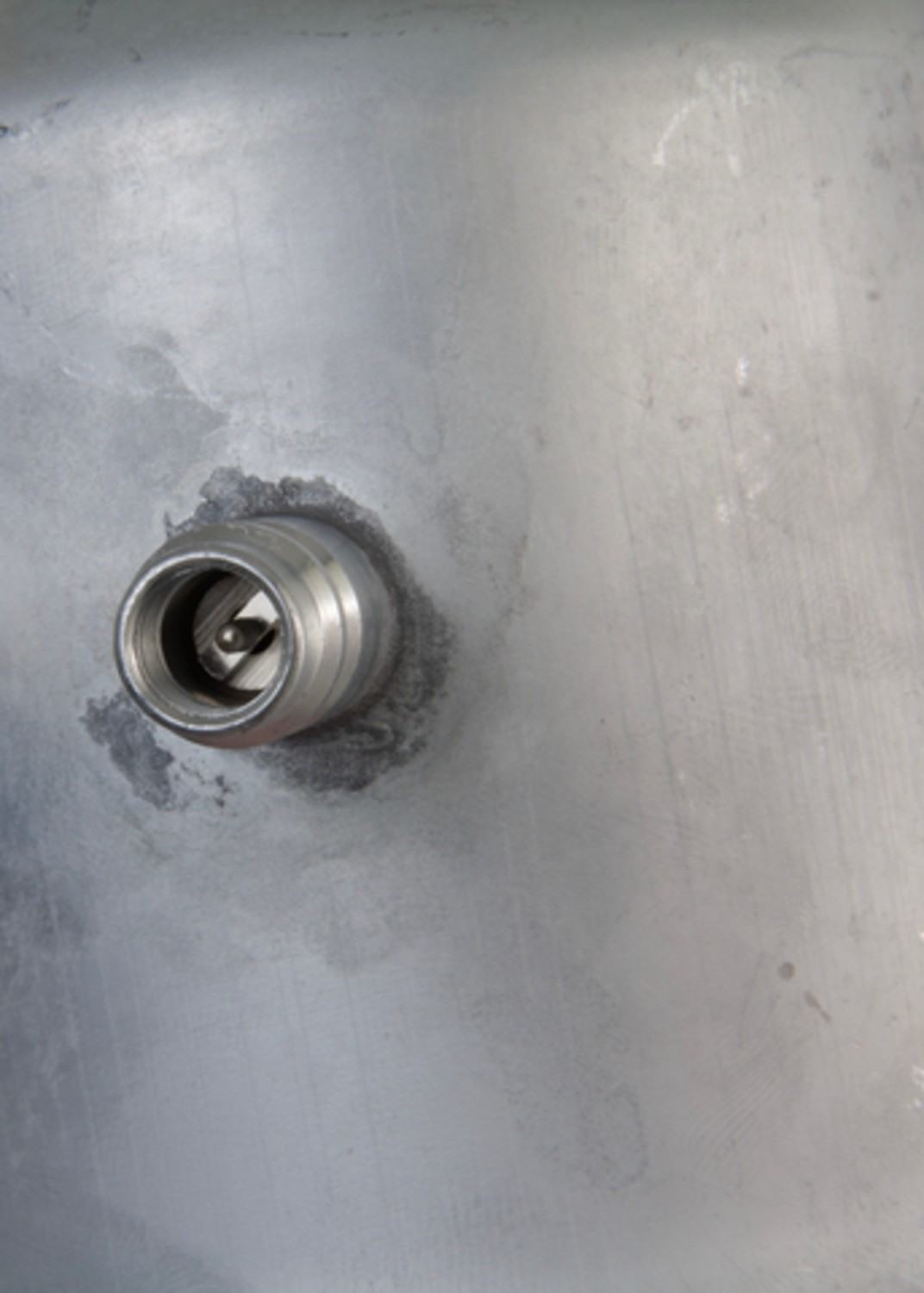

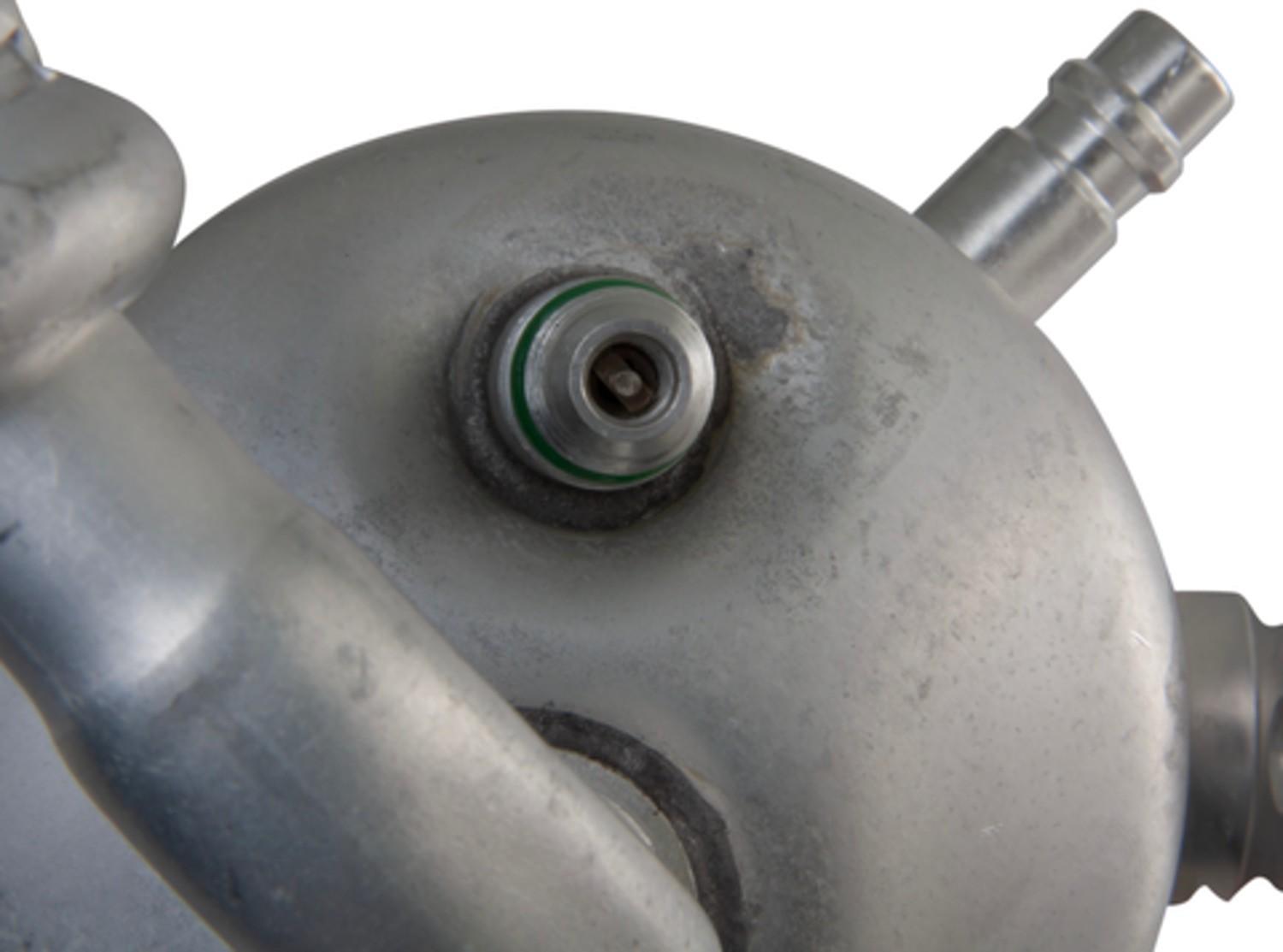

| Service Port Type | R134a Quick Disconnect |
|---|

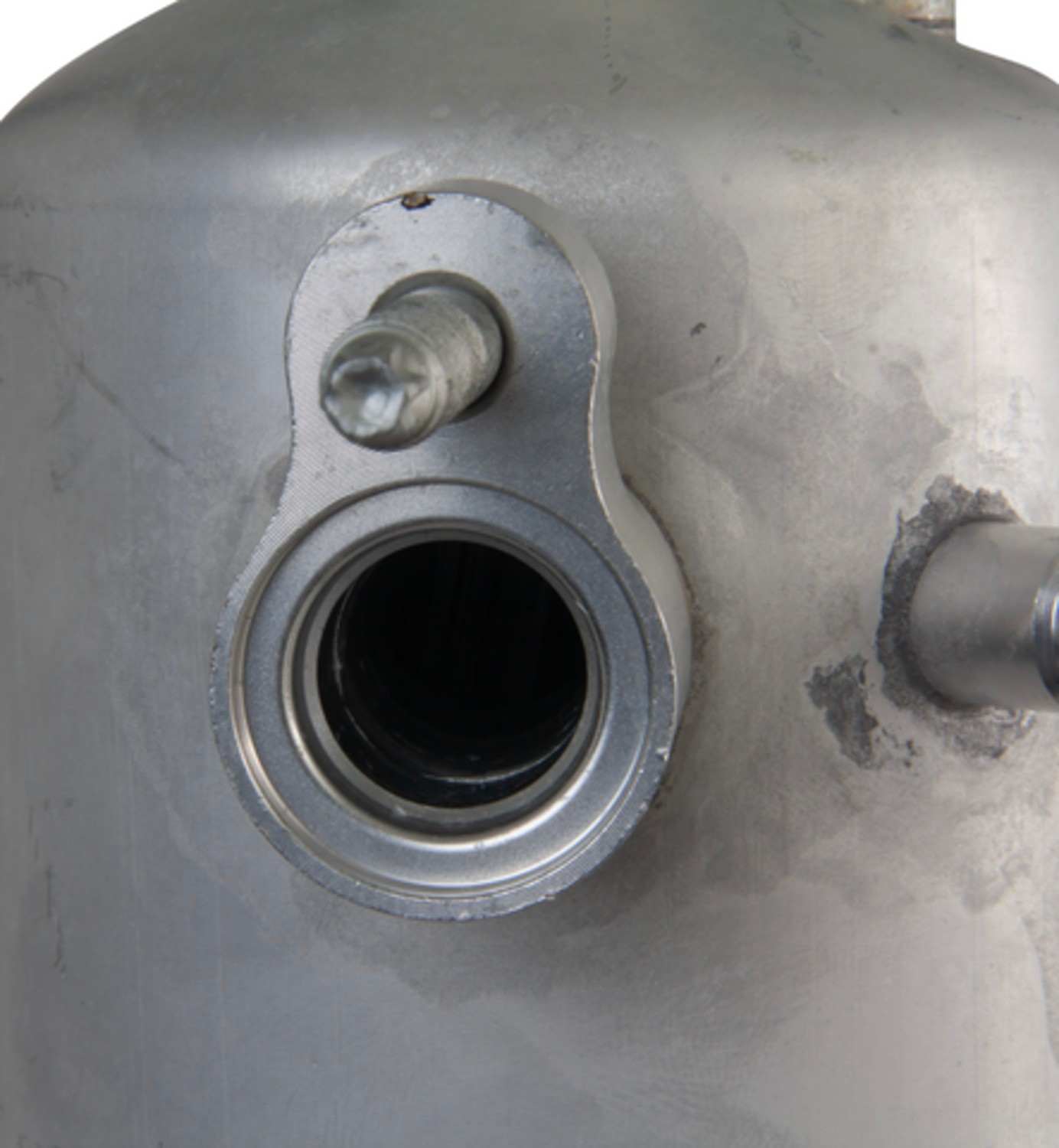

| Switch Port Dia.MM | 12 |
|---|
| Switch Port Dia. IN | 0.472 |
|---|
| Meets / Exceeds OEM? | Yes |
|---|
| O-Ring A Number/Desc | 24222 / Spring |
|---|
| O-Ring B Number/Desc | 24672 / O-Ring |
|---|
| O-Ring C Number/Desc | 24676 / O-Ring |
|---|
| O-Ring D Number/Desc | 24087 / O-Ring |
|---|
| Switch Port Included | Yes |
|---|
| Switch Port Quantity | 1 |
|---|
| Service Port Included | Yes |
|---|
| Accumulator Body Length | 8.500 |
|---|
| Accumulator Body Diameter | 3.500 |
|---|
| Mounting Bracket Included | w/o Bracket |
|---|
| Weight: | 2.85 |
|---|
| Transfers : | 13 |
|---|
| Alt Inventory: | YES |
|---|
| Quantity Required: | 1 |
|---|
| Dimensional Weight: | 4.68 |
|---|
