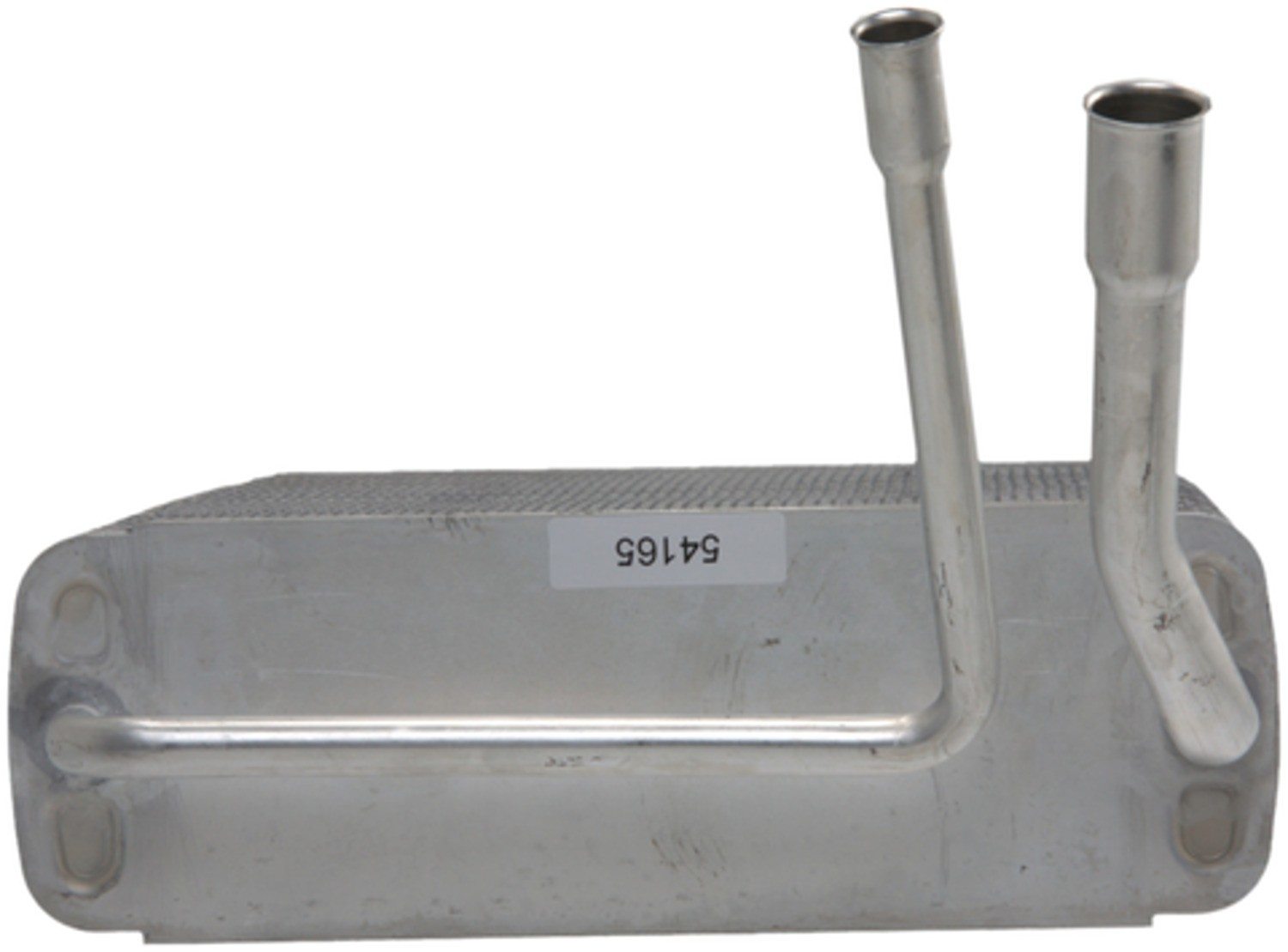

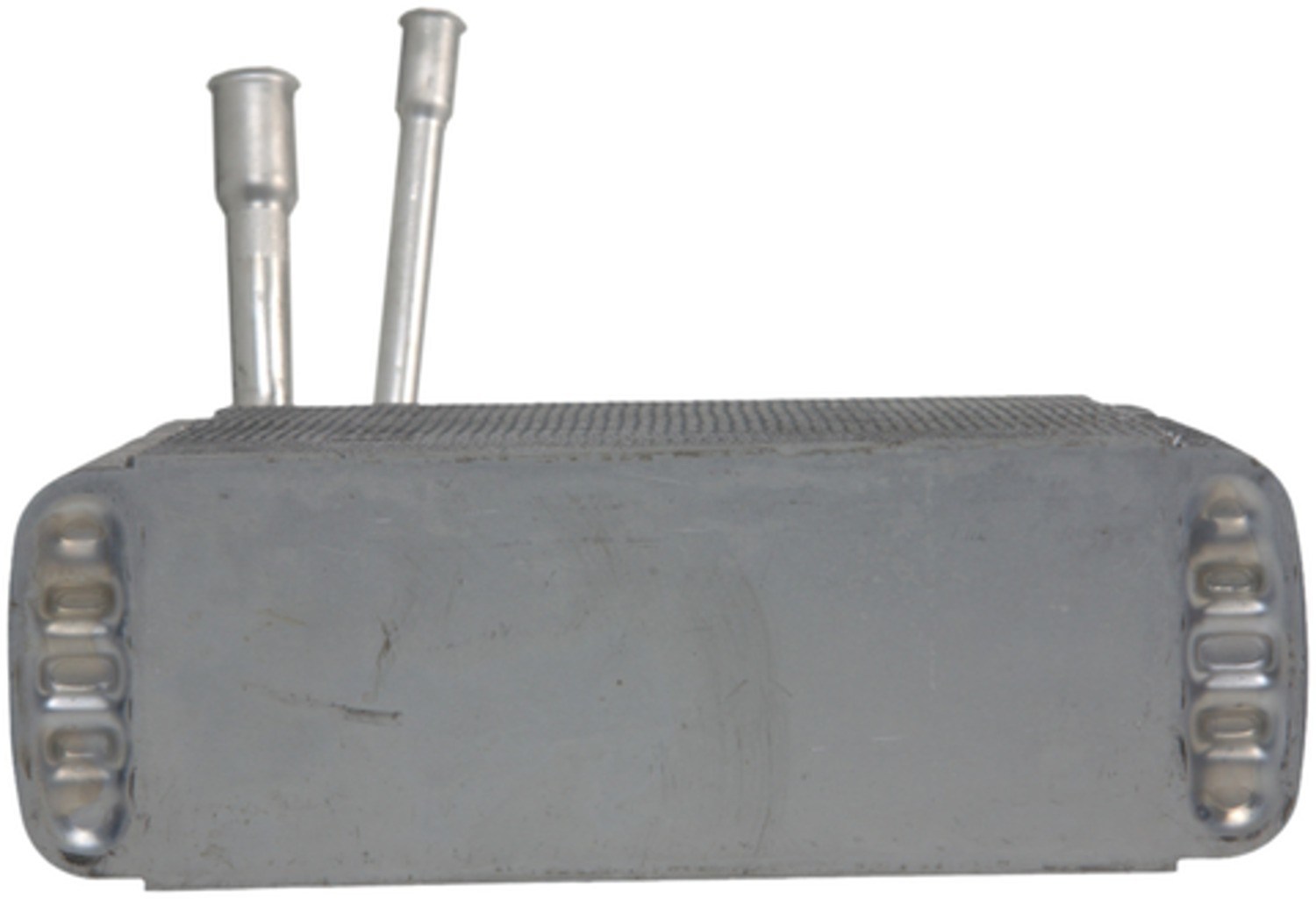

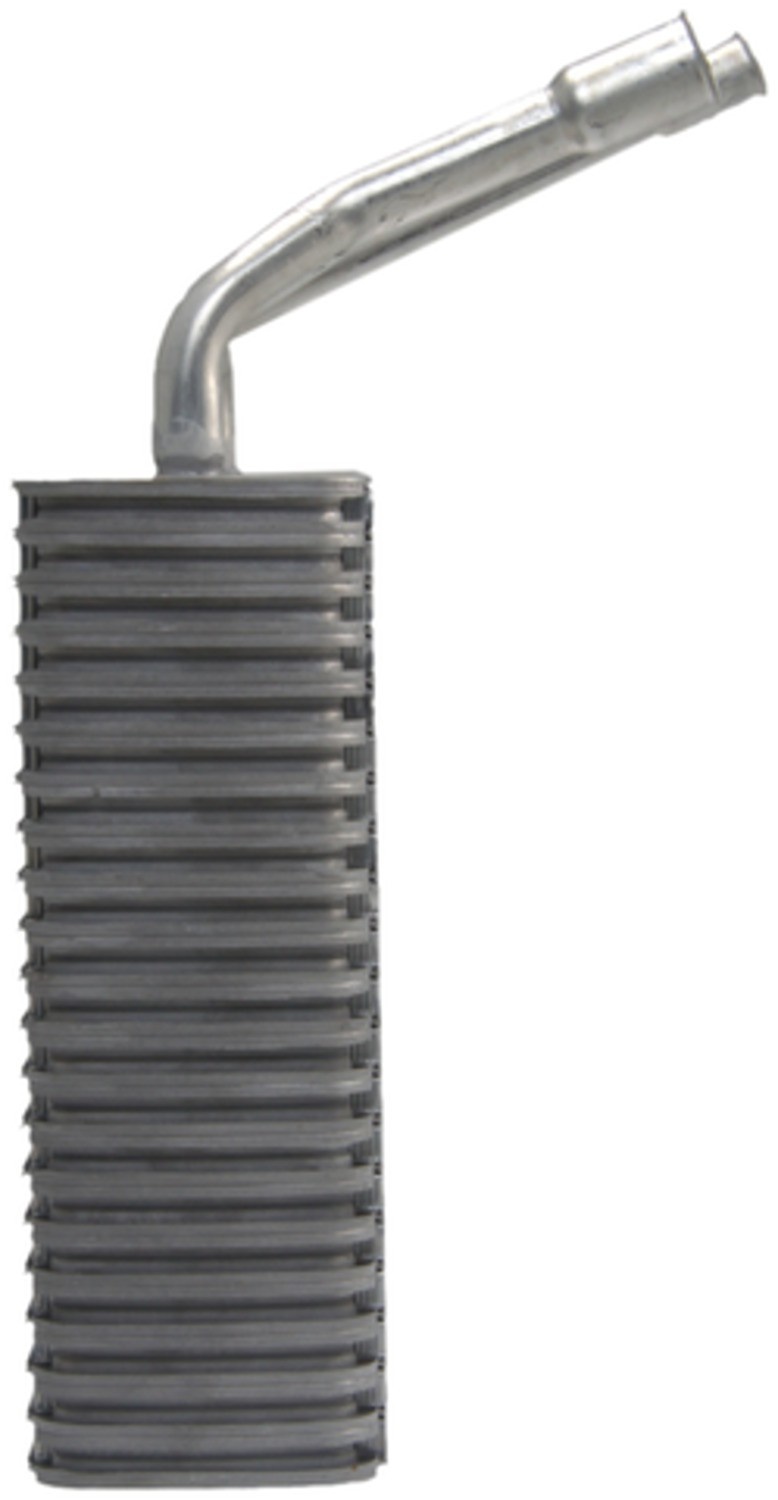

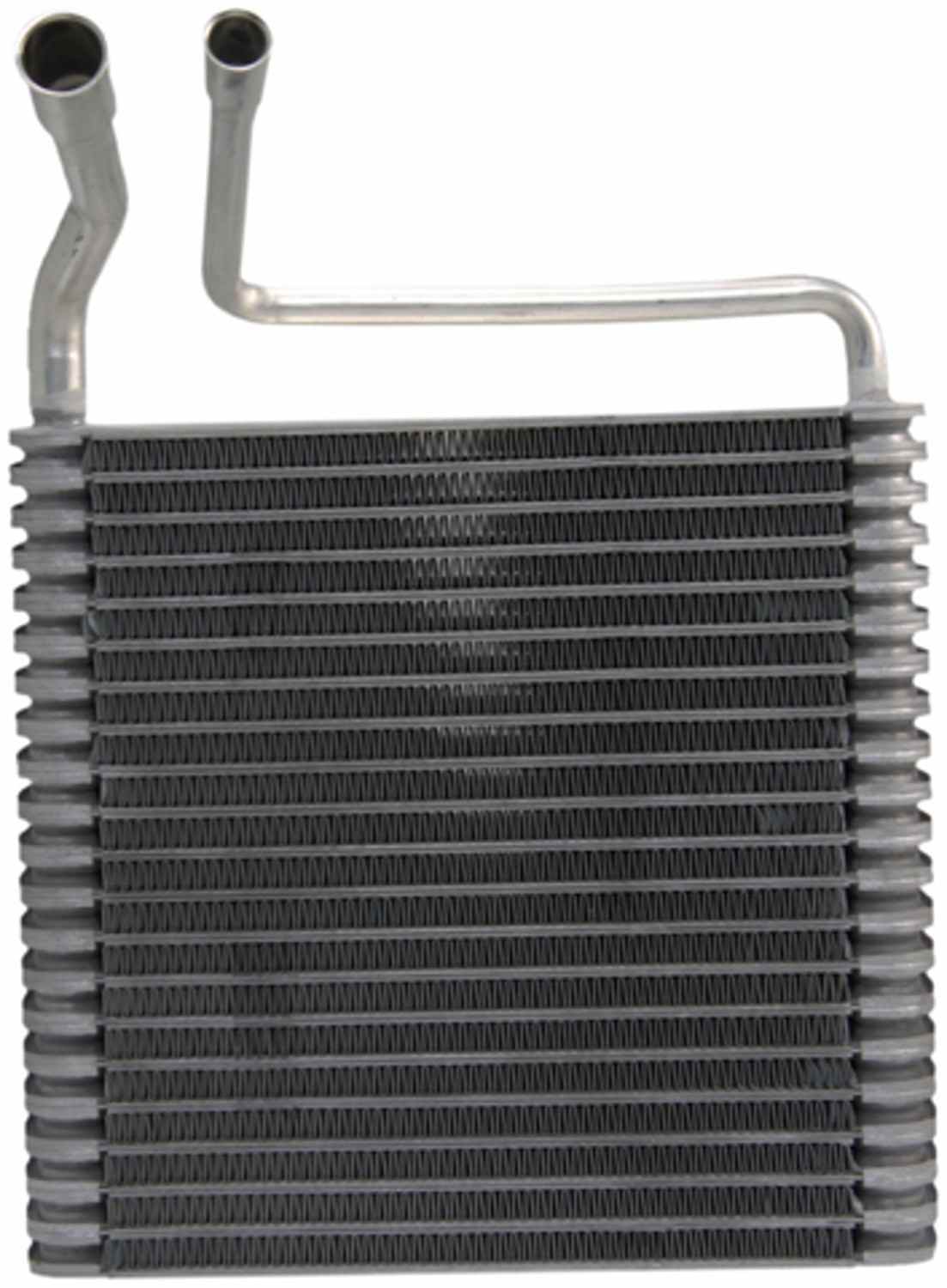

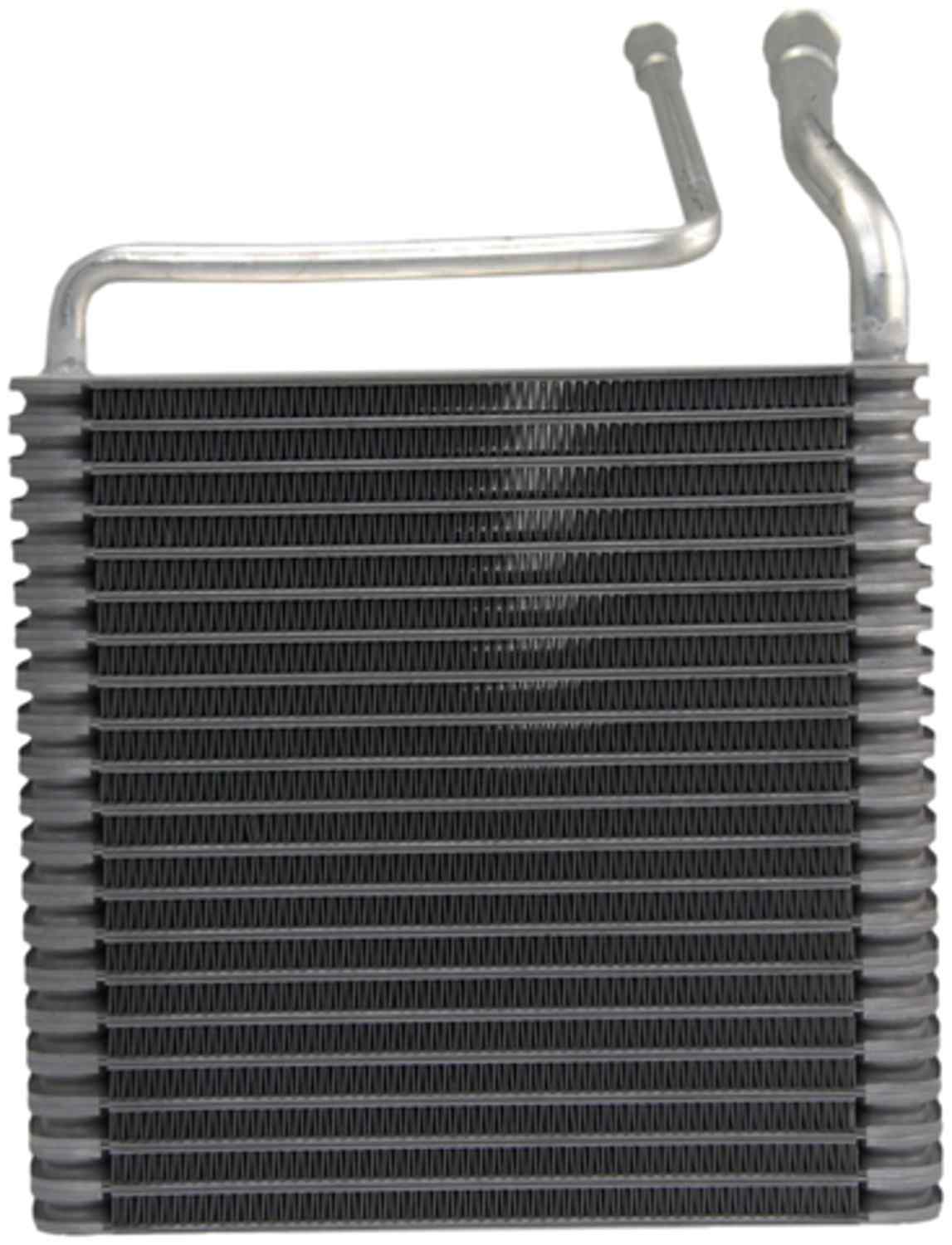

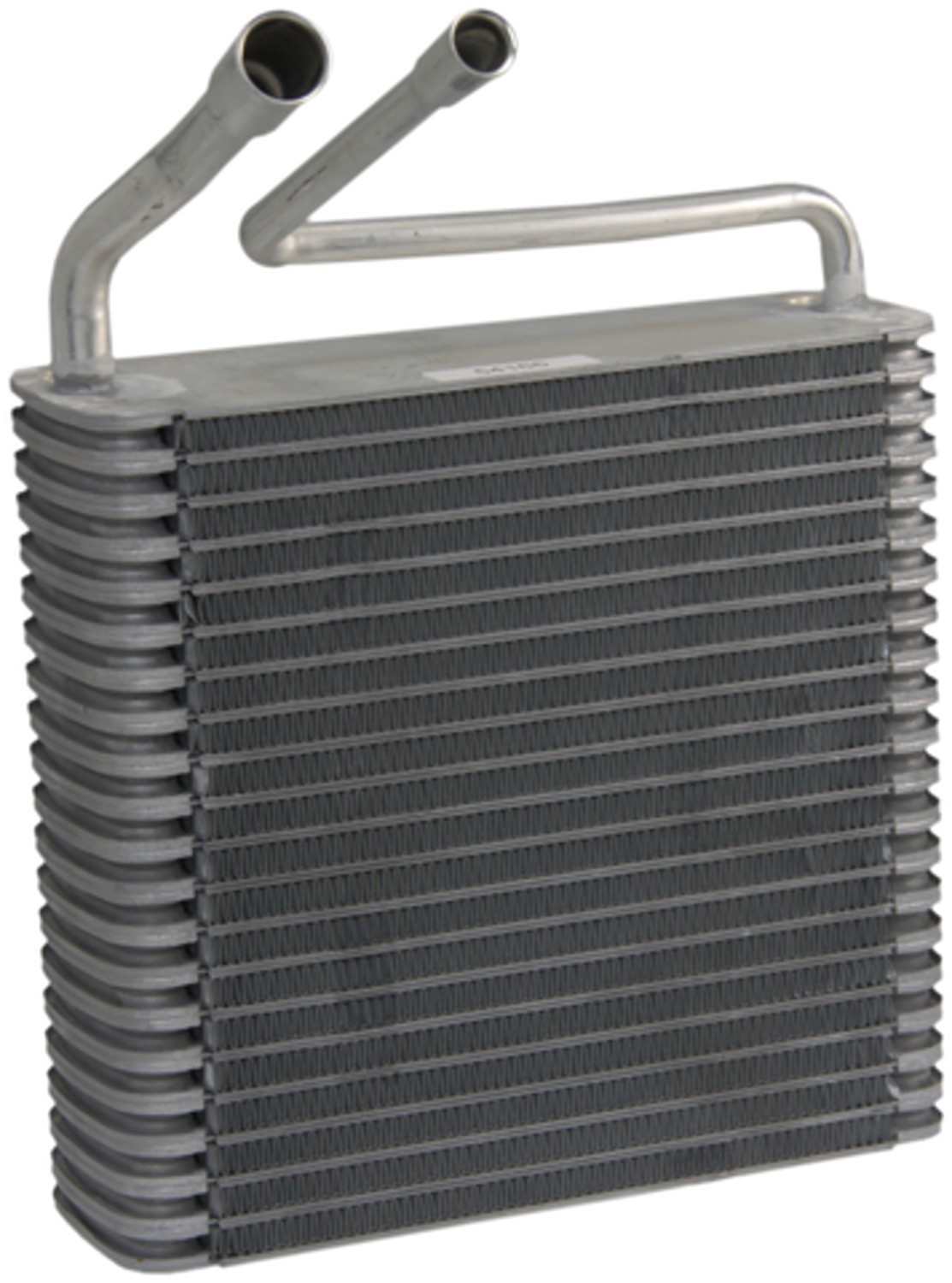

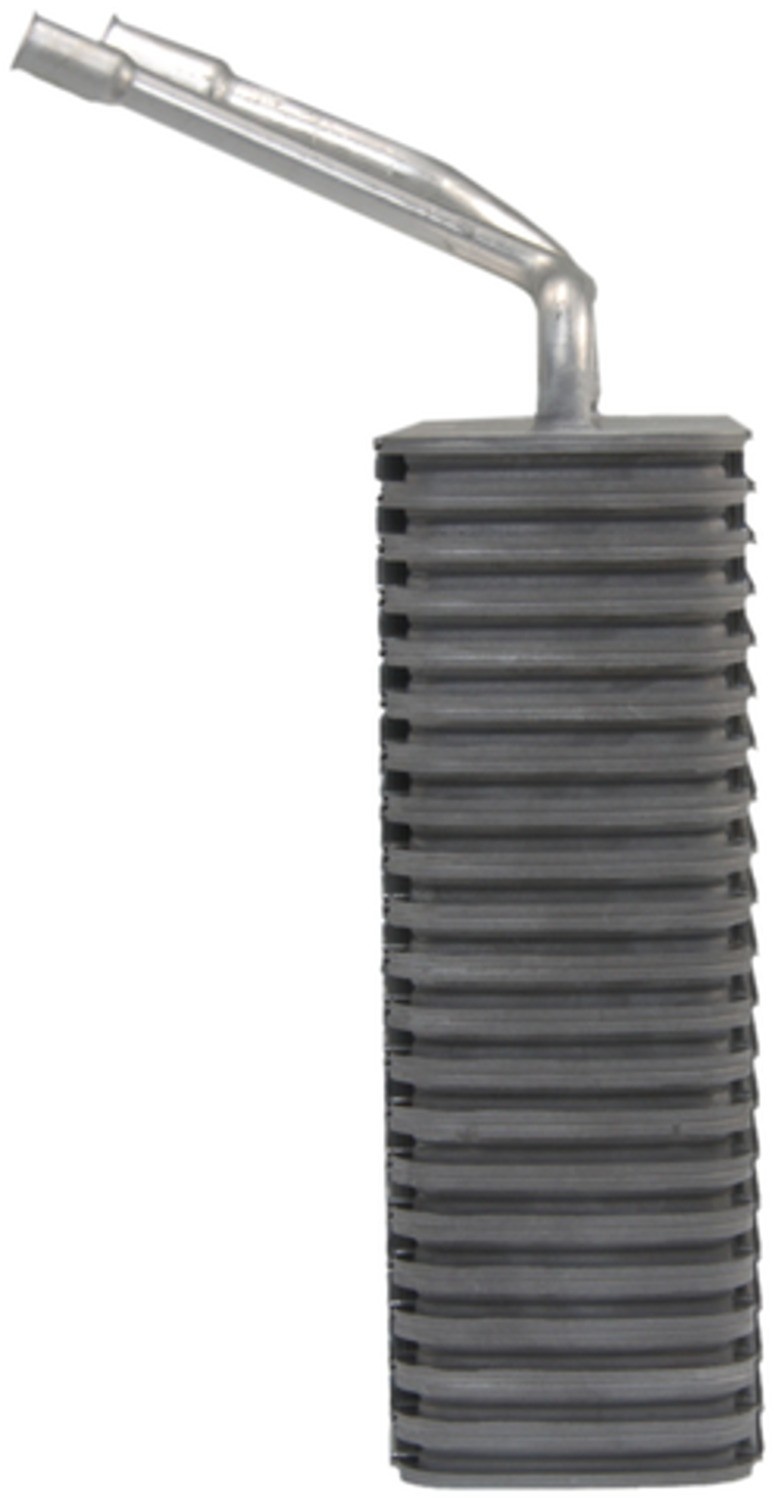

Plate & Fin Evaporator Core Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons. WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. | Plate & Fin Evaporator Core
| Type | Plate & Fin |
|---|---|
| Depth | 3.571 |
| Width | 10.63 |
| Height | 9.625 |
| Material | Aluminum |
| Thickness | 3.571 |
| Description | Evaporator Cores |
| Core Depth MM | 90.7 |
| Core Width MM | 269.88 |
| Core Height MM | 244.47 |
| O-Ring A Quantity | 3 |
| O-Ring B Quantity | 3 |

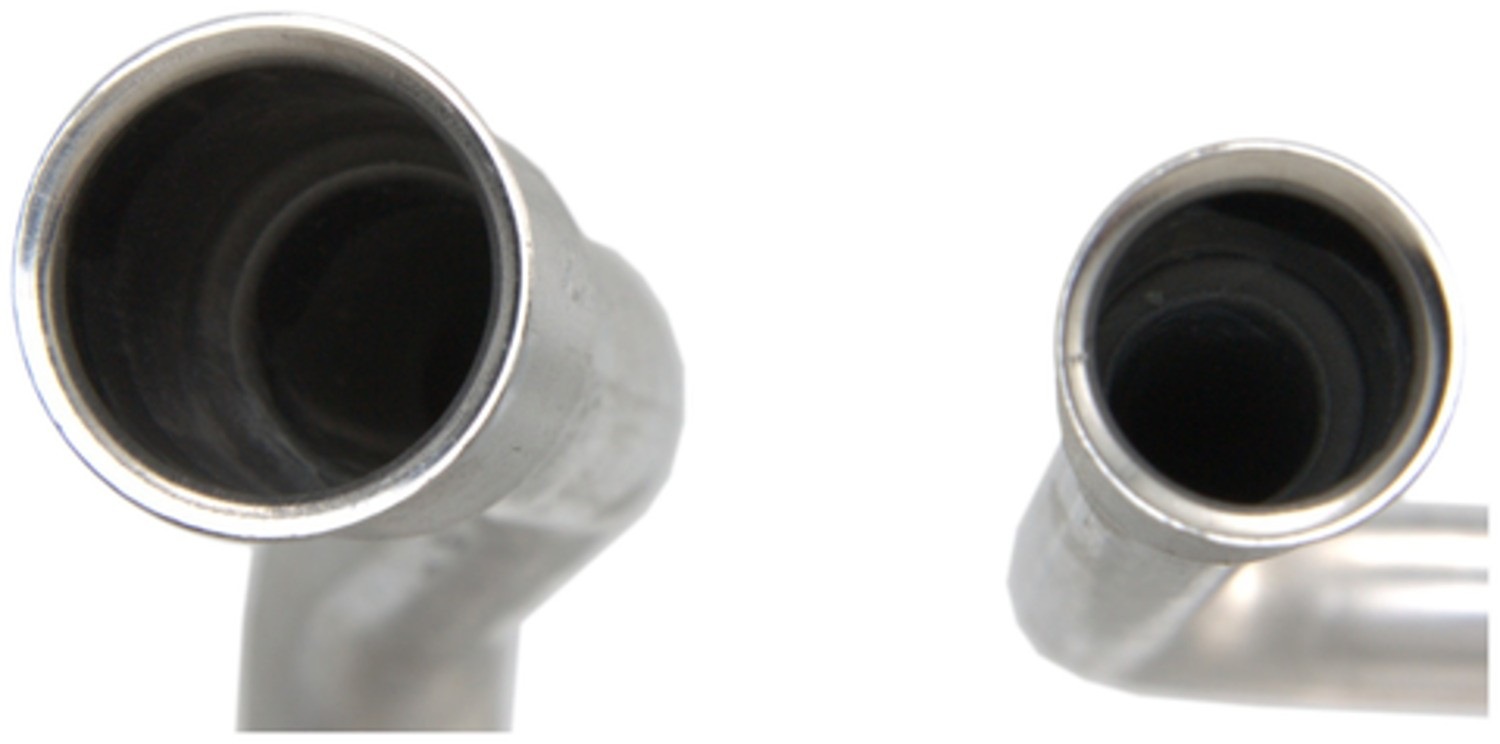

| Inlet Fitting Type | Female Springlock |
| Core Depth Fraction | 3-9/16 |
| Core Width Fraction | 10-5/8 |
| Outlet Fitting Type | Female Springlock |
| Core Height Fraction | 9-5/8 |
| Inlet Fitting Gender | Female |
| O-Ring A Number/Desc | 24668 / O-Ring |
| O-Ring B Number/Desc | 24672 / O-Ring |
| Outlet Fitting Gender | Female |
| Weight: | 6.17 |
| Transfers : | 3 |
| Alt Inventory: | YES |
| Quantity Required: | 1 |
| Dimensional Weight: | 8.99 |
